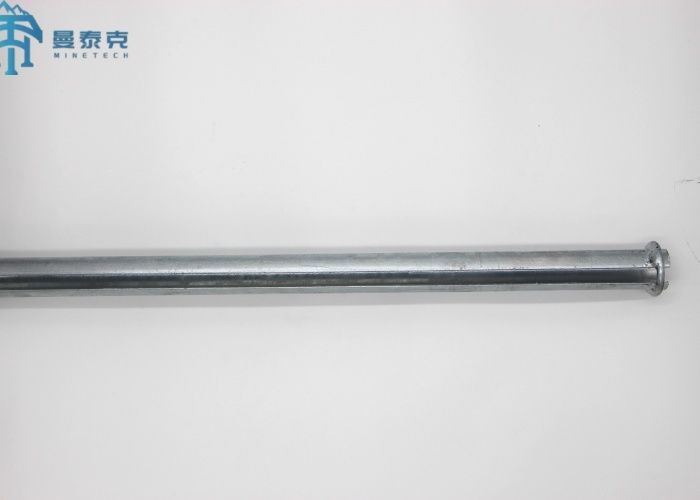

47mm Friction Bolts Stabilizer For Ground Support

Product Description:

Split rock friction anchor system is also a split anchor system, which is composed of high-strength steel pipe (alloy steel strip) or thin steel plate and a perforated tray. From the appearance, it can be seen at the end of the anchor rod. A U-shaped cross-section and longitudinally grooved bolt. It is mainly used for support engineering projects and can be used in underground copper mines, recent mining, tunnel construction, bridges, dams and other infrastructure projects. In addition to the above areas, it can also be used to stabilize the ground and prevent erosion. The installation method of friction bolts is simple and the difficulty coefficient is low. It is an important advanced material in the field of engineering support projects today.

Product Installation

1.Drill holes according to specifications: Use a rock drill to drill holes in the ceiling or walls. The diameter of the hole will be slightly smaller than the diameter of the bolt.

2.Pay attention to keeping clean: Compressed air is recommended to clean the holes and remove dust and loose particles.

3.Insert the bolts: Insert the split friction bolt into the hole that exactly lines up with it, making sure the tray is resting on the surface of the ceiling or wall.

4.Installation: Place the installation tool on the bolt head and tap with a hammer until the bolt is fully installed. Tool and hammer strikes must be perfectly aligned with the bolt axis to avoid distortion. The bolt head deforms slightly to make contact with the ceiling or wall surface, creating friction that helps maintain stability.

5.Verification check: Verify bolt installation to ensure it is placed correctly and has the proper tension.

Technical Parameters:

Applications:

47mm Friction Bolt is mainly used as primary support in mechanized jumbo development and production mining.

It is one of the standard Friction Bolt widely used in worldwide projects of mining, tunnels, and dams as rock support material.

Different thicknesses are available, such as 3.0mm, 3.2mm

Both galvanizing and black are available.

Packing and Shipping:

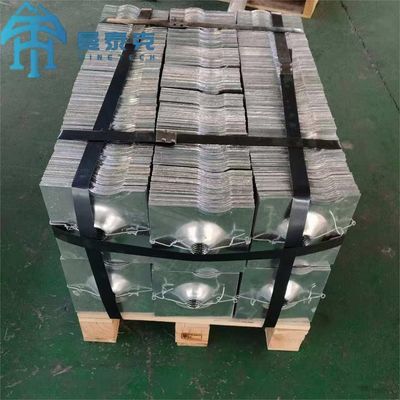

Packed in Carton or Wooden Box.

Sample will be sent by Fedex, shipping time 7-10days, main order will be shipped by sea.

Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
