تفاصيل المنتج:
|
| اسم المنتج: | زر استرجاع الموضوع بت | ميزة: | متينة وعالية القوة |
|---|---|---|---|
| نوع المعالجة: | تزوير | يستخدم: | تعدين الركاز |
| مادة: | ارتفاع المنغنيز الصلب | لون: | الأحمر والذهبي والأصفر |
| قطر: | 64 ملم / 76 ملم / 89 ملم | طلب: | حفر الصخور، التعدين جيدا، حفر الخام |
| إبراز: | Retract Thread Button Bit T45,Top Hammer Drill Bits,Rock Drilling Tools with warranty,Top Hammer Drill Bits,Rock Drilling Tools with warranty |
||

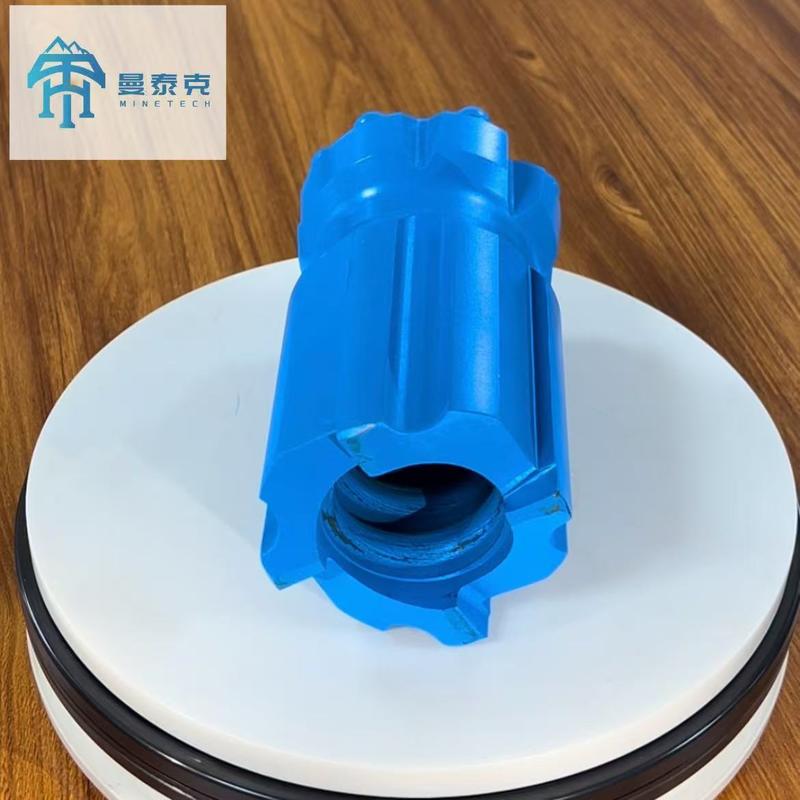

Retract Thread Button Bit T45 Rock Drilling Tools Top Hammer Drill Bits
Product description:
Retract thread button bits in deep hole drilling operations, with high flatness, good stability, can meet the needs of
large aperture use, widely used in underground mining, open-pit mining, hydropower engineering, quarry field and other engineering
construction.

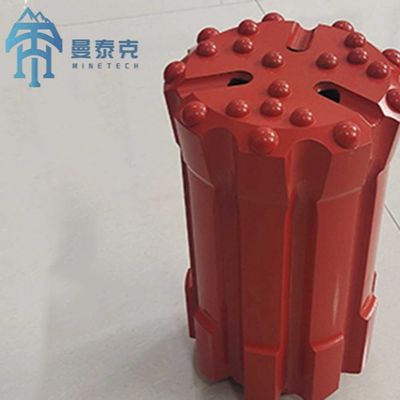

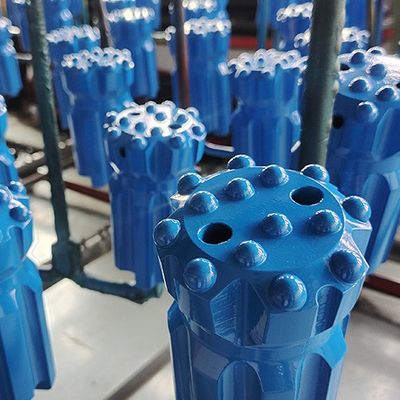

T45 thread button bit
Bit Diameter: 76mm-102mm
Button bit design: Flat face, drop center, Normal and Retractale body.
Tungsten carbide (Buttons): Spherical, Ballistic and Conical.
Competitive advantages:
* This type of bit is well known for its wear resistance on medium-hard to hard rock formations
* Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
* Widely used drifting and tunneling
* Bit face design is ideal for medium-hard to hard rock formations
* High footage speed and very low percentage of carbide falling off
| Size | Button Quantity | Buckle type | Weight | |
| Front | Gauge | |||
| 64mm | 4*10 | 8*10 | R32 | 2.2KG |
| 76mm | 4*11 | 8*11 | T38 | 3.3KG |
| 89mm | 6*13 | 8*12 | T38 | 4.8KG |
| 102mm | 6*13 | 8*13 | T45 | 6.8KG |
| 115mm | 6*14 | 8*14 | T51 | 9.8KG |
| 127mm | 8*14 | 8*16 | T51 |
12KG |
